MAINLY USED IN
Landscaping
Utilities
-
OPERATING WEIGHT
13.75 ton
-
BUCKET CAPACITY (SAE HEAPED)
0.24~0.76 m³
-
ENGINE POWER (SAE J1349, NET)
99/2,000 kW/rpm
-
Handling
The hydraulic excavator's power, durability, ease of servicing, and its precise control increase its effectiveness and life expectancy. With the DX140W, We offers an excellent return on investment.
-
Comfort
The work rate of the hydraulic excavator is directly linked to the performance of its operator. We have designed the DX140W by putting the operator at the centre of the development goals. The result is significant ergonomic value that improves the efficiency and safety of the operator.
-
Performance

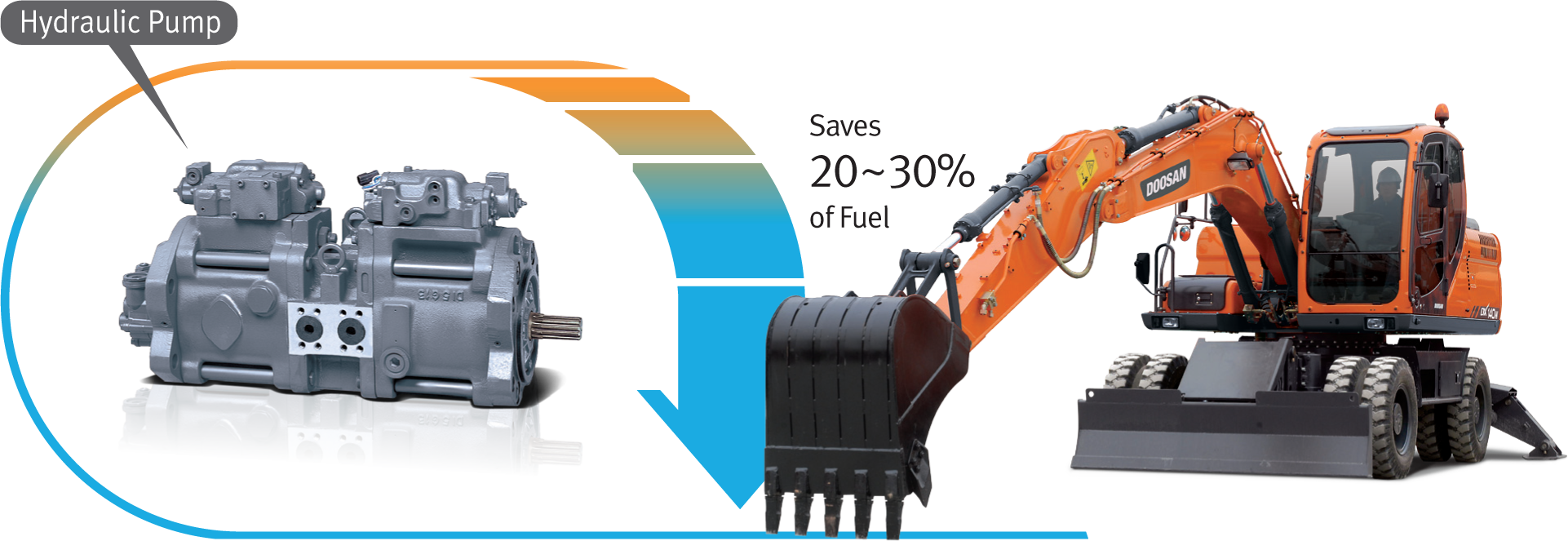

The performance of the DX140W has a direct effect on its productivity. Its new ""Common Rail"" engine and new e-EPOS controlled hydraulic system have been combined to create an unbeatable hydraulic excavator, with a cost/performance ratio that makes the DX140W even more appealing.
-
Reliability
The reliability of an item of plant contributes to its overall lifetime operating costs. We use computer-assisted design techniques, and highly durable materials and structures which it tests under extreme conditions. Durability and longevity are our first priorities.
-
Maintenance
Short maintenance operations at long intervals increase the on-site availability of heavy equipment. We use developed the DX140W with a view to creating even higher productivity and profitability for the user.
| Classification | DX140W |
|---|---|
| Operating Weight | 13.75 ton |
| Bucket Capacity (SAE HEAPED) | 0.24~0.76 m³ |
| Engine Power (SAE j1349, net) | 99/2,000 kW/rpm |
| Engine Model | DL06 |
| Travel Speed Forward (1 / 2 / 3 / 4 ) | 37/32/10/3.5 km/h |
| Max. Digging Reach | 7,520 mm |
| Max. Digging Depth | 4,580 mm |
| Max. Digging Height | 8,130 mm |
| Overall Length | 7,235 mm |
| Overall Width | 2,496 mm |
| Overall Height | 3,351 mm |
Products
| Classification |
|---|
| Operating Weight |
| Bucket Capacity (SAE HEAPED) |
| Engine Power (SAE j1349, net) |
| Engine Model |
| Travel Speed Forward (1 / 2 / 3 / 4 ) |
| Max. Digging Reach |
| Max. Digging Depth |
| Max. Digging Height |
| Overall Length |
| Overall Width |
| Overall Height |
| DX140W |
|---|
| 13.75 ton |
| 0.24~0.76 m³ |
| 99/2,000 kW/rpm |
| DL06 |
| 37/32/10/3.5 km/h |
| 7,520 mm |
| 4,580 mm |
| 8,130 mm |
| 7,235 mm |
| 2,496 mm |
| 3,351 mm |
